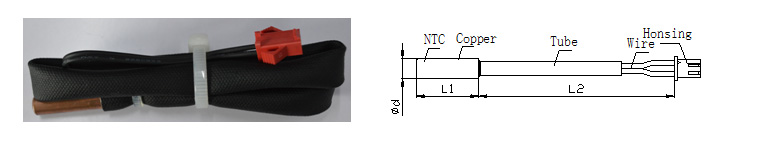

產品性能簡述
Description of Product Performance
| Code(代碼) | d | L1 | L2 | ||
|---|---|---|---|---|---|
|
Dimension (尺寸) |
客戶自定義 Customized | ≥50mm | |||
| 產品性能 |
1、線材規格：依客戶需求 |
Product Performance | 1.Wire specification：By Customer's Requirements. | ||
| 2、耐壓：AC1000V～AC2000V,3Sec | 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3、絕緣：DC500V Min 100MΩ,3Sec | 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4、使用溫度范圍： -30℃～105℃ | 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | -30℃～125℃ | ||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3、室內盤管溫傳感器獨立設計，安裝更方便 | 3.Independent design of indoor coil temperature sensor for easier installation | ||||
| 產品用途 | 適用于空調室內盤管溫控模塊 | Product Usage | apply to air-conditioning indoor coil temperature control module | ||

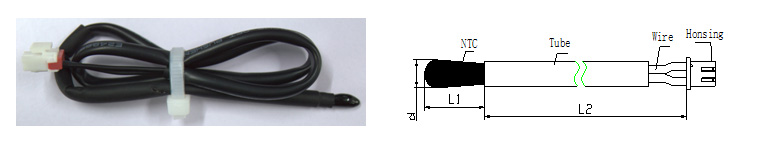

產品性能簡述
Description of Product Performance
| Code(代碼) | d | L1 | L2 | ||
|---|---|---|---|---|---|
|
Dimension (尺寸) |
客戶自定義 Customized | ≥50mm | |||
| 產品性能 |
1、線材規格：依客戶需求 |
Product Performance | 1.Wire specification：By Customer's Requirements. | ||
| 2、耐壓：AC1000V～AC2000V,3Sec | 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3、絕緣：DC500V Min 100MΩ,3Sec | 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4、使用溫度范圍： -30℃～105℃ | 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | -30℃～125℃ | ||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3、空調室內環溫溫度傳感器獨立設計，安裝更方便 | 3.Independent design of the ambient temperature and temperature sensor in the air-conditioning room makes installation more convenient | ||||
| 產品用途 | 適用于空調室內環溫溫控模塊 | Product Usage | apply to air-conditioning indoor ring temperature and temperature control module | ||

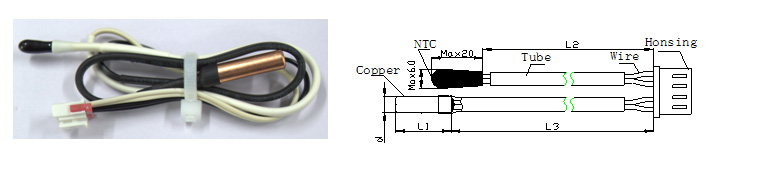

產品性能簡述
Description of Product Performance
| Code(代碼) | d | L1 | L2 | L3 | |||
|---|---|---|---|---|---|---|---|
|
Dimension (尺寸) |
客戶自定義 Customized |
≥50mm | |||||
| 產品性能 |
1、線材規格：依客戶需求 |
Product Performance | 1.Wire specification：By Customer's Requirements. | ||||
| 2、耐壓：AC1000V～AC2000V,3Sec | 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||||
| 3、絕緣：DC500V Min 100MΩ,3Sec | 3.Insulation：DC500V Min 100MΩ,3Sec | ||||||
| 4、使用溫度范圍： -30℃～105℃ | 4.Operating temperature range：-30℃～105℃ | ||||||
| -30℃～125℃ | -30℃～125℃ | ||||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
| 3、室溫、管溫傳感器一體式設計，安裝更方便 | 3.Integrated design of room temperature and tube temperature sensors for easier installation | ||||||
| 產品用途 | 適用于空調室內盤管溫控模塊 | Product Usage | apply to air-conditioning indoor coil temperature control module | ||||
