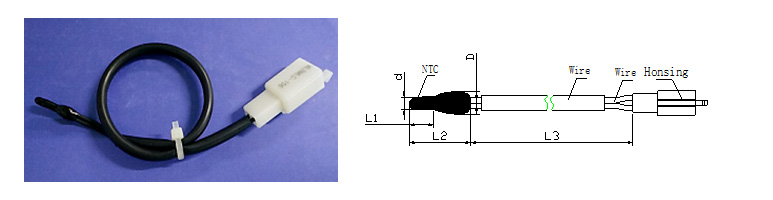

Product characteristic description
| Code | B | d | D | L1 | L2 | L3 |
| Dimension | Customized | ≥50mm | ||||
| Product Performance | 1.Wire specification：By Customer's Requirements. | ||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | |||
| 3.Insulation：DC500V Min 100MΩ,3Sec | |||
| 4.Operating temperature range：-30℃～105℃ | |||
| -30℃～125℃ | |||
| -30℃～150℃ | |||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | |||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | |||
| Product Usage | apply to lithium battery temperature control module | ||

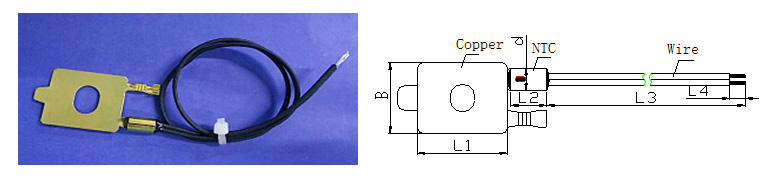

Product characteristic description
| Code | d | D | L1 | L2 | |||
Dimension | 5mm Max | 8mm | Customized | ≥50mm | |||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | ||||
| -30℃～150℃ | ||||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | ||||
| Product Usage | apply to Automotive air conditioning temperature control module | |||

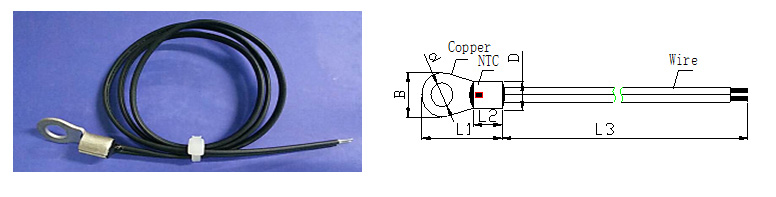

Product characteristic description
| Code | B | D | L1 | L2 | L3 | L4 |
Dimension | 25mm | 6mm | Customized | ≥50mm | ||
| Product Performance | 1.Wire specification：By Customer's Requirements. | ||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | |||
| 3.Insulation：DC500V Min 100MΩ,3Sec | |||
| 4.Operating temperature range：-30℃～105℃ | |||
| -30℃～125℃ | |||
| -30℃～150℃ | |||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | |||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | |||
| Product Usage | apply to Automobile charging pile temperature control module | ||

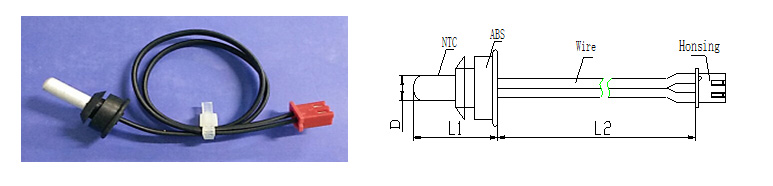

Product characteristic description
| Code | D | L1 | L2 | ||
| Dimension | Customized | ≥50mm | |||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||
| 4.Operating temperature range：-30℃～105℃ | ||
| -30℃～125℃ | ||
| -30℃～150℃ | ||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | ||
| Product Usage | apply to air duct temperature control module | |

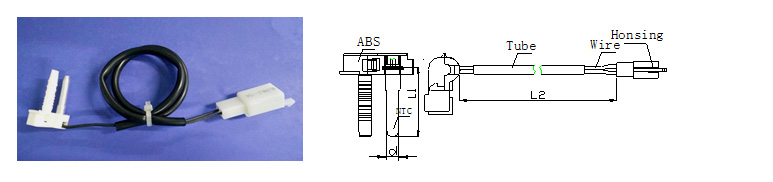

Product characteristic description
| Code | d | L1 | L2 | ||
| Dimension | 4mm | Customized | ≥50mm | ||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||
| 4.Operating temperature range：-30℃～105℃ | ||
| -30℃～125℃ | ||
| -30℃～150℃ | ||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | ||
| Product Usage | apply to evaporator temperature control module | |

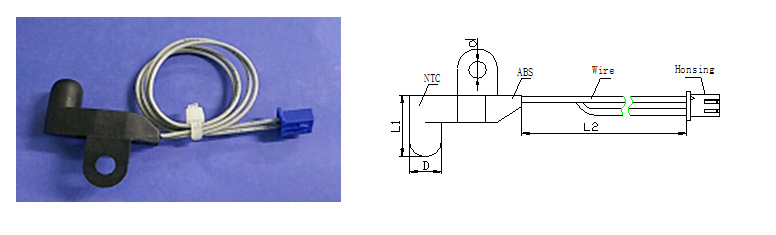

Product characteristic description
| Code | d | D | L1 | L2 | L3 |
| Dimension | 4mm Max | 6mm max | Customized | ≥50mm | |
| Product Performance | 1.Wire specification：By Customer's Requirements. | |
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||
| 4.Operating temperature range：-30℃～105℃ | ||
| -30℃～125℃ | ||
| -30℃～150℃ | ||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||
| 3.The product is easy to install, has good cold resistance and heat resistance, and can work under long-term load. | ||
| Product Usage | apply to air-conditioning temperature control module | |
